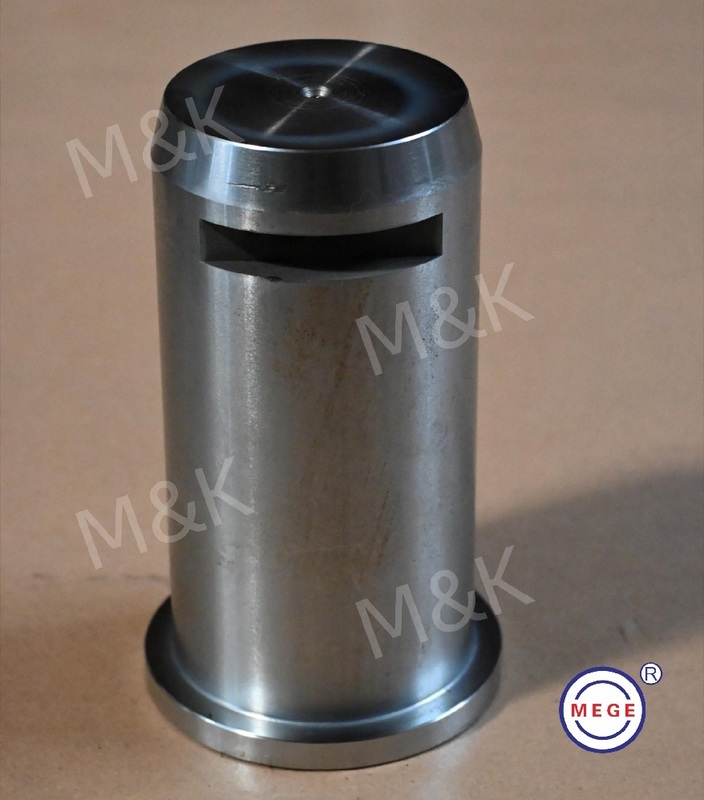

Customized Cylinder Shaft Axle For Telescopic Cylinder Walking / Chassis Mechanisms

Product Profile: Heavy-Duty Traveling Mechanism Shaft - Telescopic cylinder Shaft

A critical force-transmission component connecting telescopic cylinders to walking systems in excavators, cranes, pavers, and other construction machinery. Engineered to convert cylinder thrust/pull into precise linear motion while withstanding extreme operational stresses.

Key Features:
✔ High-Strength Material – 42CrMo/35CrMo alloy steel, quenched & tempered to 241-285 HBW
✔ Surface Optimization – Quenched to 45-55 HRC + chrome-plated (20-50μm) for wear/corrosion resistance
✔ Integrated Sealing Design – Boss structures for retaining/sealing rings to prevent axial movement and dust ingress
✔ Force Transmission – Efficiently transfers cylinder extension/retraction forces to traveling mechanisms

Technical Specifications:

• Materials: 42CrMo, 35CrMo

• Core Hardness: 241-285 HBW (quenched & tempered)

• Surface Hardness: 45-55 HRC (quenched)

• Chrome Plating: 20-50μm

• Function: Cylinder force transmission, axial positioning, sealing protection

Applications:

• Excavator/crane traveling systems

• Paver chassis mechanisms

• Heavy-duty construction machinery walking assemblies

Why Choose This Shaft:

• Dual hardness profile balances strength and toughness

• Chrome plating ensures longevity in outdoor environments

• Sealing integration reduces maintenance frequency

• Precision-machined for reliable force transmission

•

At MEGE, we specialize in delivering high-quality, precision-engineered mechanical components customized to your specifications. With decades of experience in OEM/ODM manufacturing, we combine advanced engineering expertise with flexible production capabilities to meet your most demanding requirements.
